Recubrimiento | AITiN /TiALN /TiAISiN AITiSiN |
HRC | HRC40/46/56/65 |
Ángulo de hélice | 30°/45°/60°/90° | Vástago | H6 cilíndrico |
Material | Varilla de carburo IMC™ | Tolerancia en el diámetro de corte | 0-0.030 |

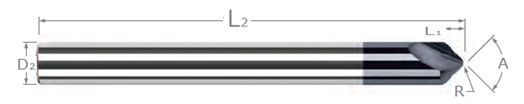

Ángulo de hélice | Diámetro del cortador | Radio | Longitud de filo | O.A.L. | ALTiN/TiN recubierto |
Sin recubrimiento | |
A | +1° | D2 | R | L1 | L2 | UNT EDP# Haga clic para ordenar | UNT EDP#Haga clic para ordenar |
-1° | |||||||
30° | 1/8 | .0050 | .218 | 1-1/2 | |||
1/8 | .0100 | .204 | 1-1/2 | ||||
1/8 | .0150 | .190 | 1-1/2 | ||||
3/16 | .0050 | .335 | 2 | ||||
3/16 | .0100 | .321 | 2 | ||||
1/4 | .0150 | .452 | 2-1/2 | ||||
1/4 | .0100 | .437 | 2-1/2 | ||||
40° | 1/8 | .0050 | .162 | 1-1/2 | |||
1/8 | .0100 | .152 | 1-1/2 | ||||
1/8 | .0150 | .142 | 1-1/2 | ||||
60° | 1/8 | .0050 | .103 | 1-1/2 | |||
1/8 | .0075 | .100 | 1-1/2 | ||||
1/8 | .0100 | .098 | 1-1/2 | ||||
1/8 | .0150 | .093 | 1-1/2 | ||||
1/8 | .0200 | .088 | 1-1/2 | ||||
3/16 | .0050 | .157 | 2 | ||||
3/16 | .0100 | .152 | 2 | ||||
3/16 | .0150 | .147 | 2 | ||||
1/4 | .0050 | .211 | 2-1/2 | ||||
1/4 | .0100 | .206 | 2-1/2 | ||||
1/4 | .0150 | .201 | 2-1/2 | ||||
90° | 1/8 | .0050 | .060 | 1-1/2 | |||
1/8 | .0075 | .059 | 1-1/2 | ||||
1/8 | .0100 | .058 | 1-1/2 | ||||
1/8 | .0150 | .056 | 1-1/2 | ||||
1/8 | .0200 | .054 | 1-1/2 | ||||
3/16 | .0050 | .091 | 2 | ||||
3/16 | .0100 | .089 | 2 | ||||
3/16 | .0150 | .087 | 2 | ||||
1/4 | .0050 | .122 | 2-1/2 | ||||
1/4 | .0100 | .120 | 2-1/2 | ||||
1/4 | .0150 | .118 | 2-1/2 | ||||
120° | 1/8 | .0050 | .035 | 1-1/2 | |||
1/8 | .0100 | .034 | 1-1/2 | ||||
• Las fresas de extremo de chaflán con tamaños no estándar o especificaciones no enumeradas anteriormente se pueden personalizar conforme con las necesidades del cliente. |
