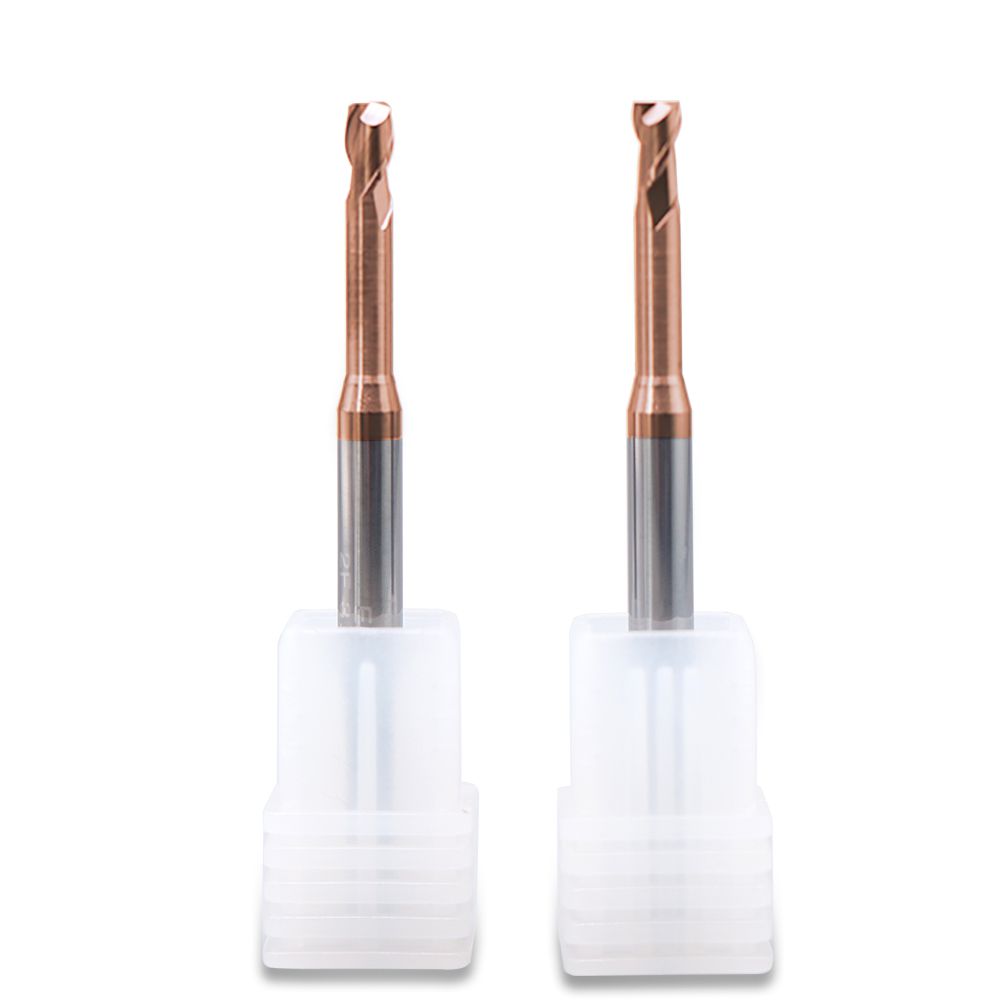

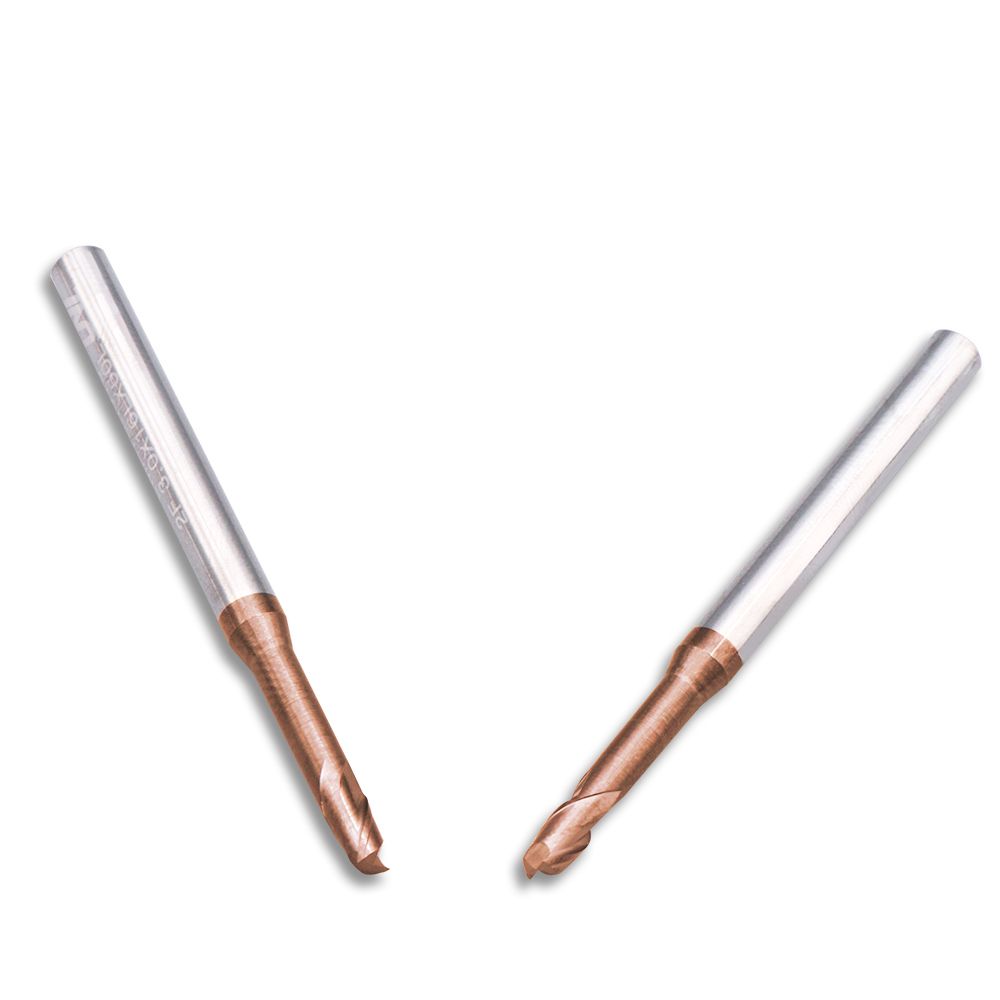

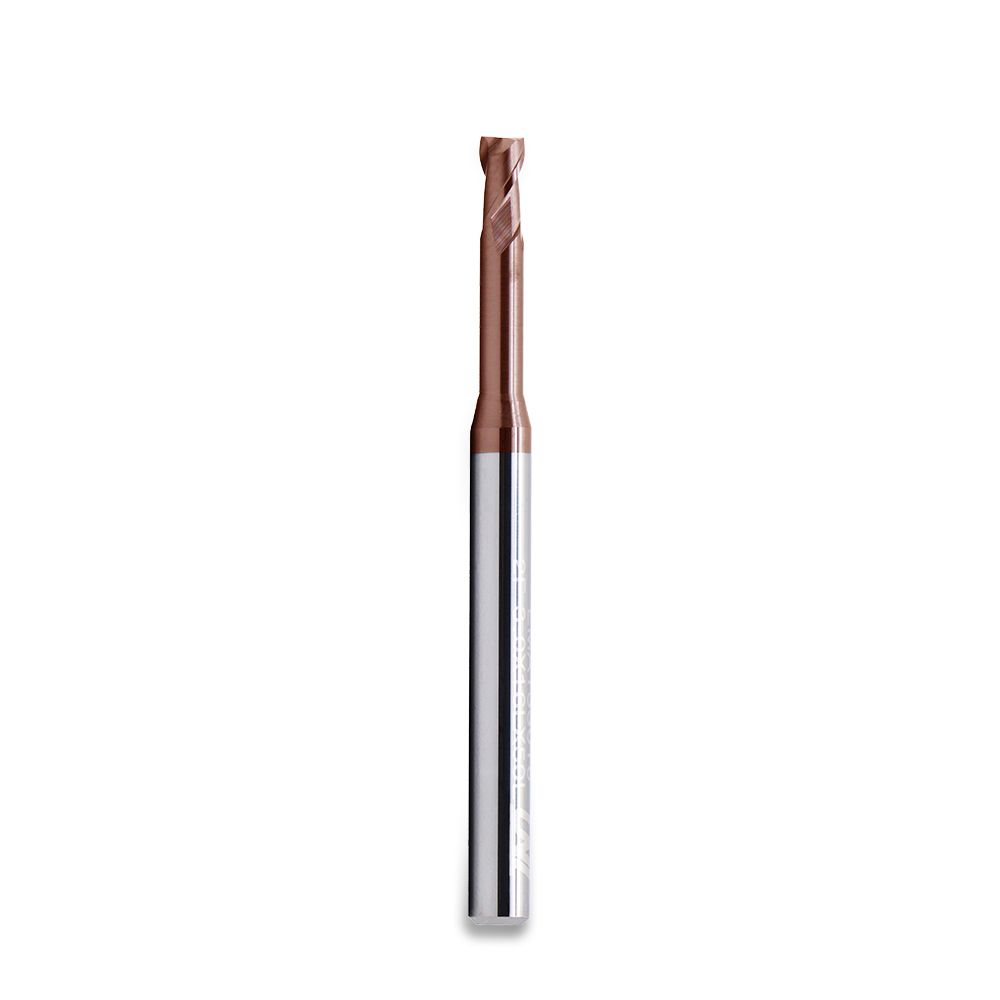

Fresa de extremo cuadrado de 2 filos EMB11 (micro-grano)
Especificaciones del producto
| Recubrimiento | AITiN | HRC | HRC50/65 |
| Ángulo de hélice | 30°/35° | Vástago | H6 cilíndrico |
| Material | Varilla de carburo UMG IMC™ | Tolerancia en el diámetro de corte | 0-0.030 |
Fresa de extremo cuadrado de 2 filos micro-grano HRC65, Larga longitud - para procesamiento de nervadura (UNT-EMB11)

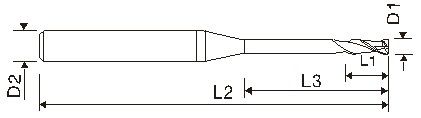

| UNT EDP # Haga clic para ordenar | Diámetro de filo D1 |
Longitud efectiva L3 |
Diámetro de vástago D2 |
Longitud de filo L1 |
O.A.L. L2 |
Filos |
| EMB110504 | 0.5 | 4 | 4 | 0.8 | 50 | 2 |
| EMB110506 | 0.5 | 6 | 4 | 0.8 | 50 | 2 |
| EMB110602 | 0.6 | 2 | 4 | 1 | 50 | 2 |
| EMB110604 | 0.6 | 4 | 4 | 1 | 50 | 2 |
| EMB110606 | 0.6 | 6 | 4 | 1 | 50 | 2 |
| EMB110608 | 0.6 | 8 | 4 | 1 | 50 | 2 |
| EMB110802 | 0.8 | 2 | 4 | 1.2 | 50 | 2 |
| EMB110804 | 0.8 | 4 | 4 | 1.2 | 50 | 2 |
| EMB110806 | 0.8 | 6 | 4 | 1.2 | 50 | 2 |
| EMB110808 | 0.8 | 8 | 4 | 1.2 | 50 | 2 |
| EMB111006 | 1.0 | 6 | 4 | 1.5 | 50 | 2 |
| EMB111008 | 1.0 | 8 | 4 | 1.5 | 50 | 2 |
| EMB111010 | 1.0 | 10 | 4 | 1.5 | 50 | 2 |
| EMB111012 | 1.0 | 12 | 4 | 1.5 | 50 | 2 |
| EMB111014 | 1.0 | 14 | 4 | 1.5 | 50 | 2 |
| EMB111016 | 1.0 | 16 | 4 | 1.5 | 50 | 2 |
| EMB111018 | 1.0 | 18 | 4 | 1.5 | 50 | 2 |
| EMB111020 | 1.0 | 20 | 4 | 1.5 | 50 | 2 |
| EMB111206 | 1.2 | 6 | 4 | 1.8 | 50 | 2 |
| EMB111208 | 1.2 | 8 | 4 | 1.8 | 50 | 2 |
| EMB111210 | 1.2 | 10 | 4 | 1.8 | 50 | 2 |
| EMB111212 | 1.2 | 12 | 4 | 1.8 | 50 | 2 |
| EMB111214 | 1.2 | 14 | 4 | 1.8 | 50 | 2 |
| EMB111216 | 1.2 | 16 | 4 | 1.8 | 50 | 2 |
| EMB111218 | 1.2 | 18 | 4 | 1.8 | 50 | 2 |
| EMB111220 | 1.2 | 20 | 4 | 1.8 | 50 | 2 |
| EMB111506 | 1.5 | 6 | 4 | 2.5 | 50 | 2 |
| EMB111508 | 1.5 | 8 | 4 | 2.5 | 50 | 2 |
| EMB111510 | 1.5 | 10 | 4 | 2.5 | 50 | 2 |
| EMB111512 | 1.5 | 12 | 4 | 2.5 | 50 | 2 |
| EMB111514 | 1.5 | 14 | 4 | 2.5 | 50 | 2 |
| EMB111516 | 1.5 | 16 | 4 | 2.5 | 50 | 2 |
| EMB111518 | 1.5 | 18 | 4 | 2.5 | 50 | 2 |
| EMB111520 | 1.5 | 20 | 4 | 2.5 | 50 | 2 |
| EMB112006 | 2.0 | 6 | 4 | 3 | 50 | 2 |
| EMB112008 | 2.0 | 8 | 4 | 3 | 50 | 2 |
| EMB112010 | 2.0 | 10 | 4 | 3 | 50 | 2 |
| EMB112012 | 2.0 | 12 | 4 | 3 | 50 | 2 |
| EMB112014 | 2.0 | 14 | 4 | 3 | 50 | 2 |
| EMB112016 | 2.0 | 16 | 4 | 3 | 50 | 2 |
| EMB112018 | 2.0 | 18 | 4 | 3 | 50 | 2 |
| EMB112020 | 2.0 | 20 | 4 | 3 | 50 | 2 |
| EMB112025 | 2.0 | 25 | 4 | 3 | 50 | 2 |
| EMB113008 | 3.0 | 8 | 4 | 4.5 | 50 | 2 |
| EMB113010 | 3.0 | 10 | 4 | 4.5 | 50 | 2 |
| EMB113012 | 3.0 | 12 | 4 | 4.5 | 50 | 2 |
| EMB113014 | 3.0 | 14 | 4 | 4.5 | 50 | 2 |
| EMB113016 | 3.0 | 16 | 4 | 4.5 | 50 | 2 |
| EMB113018 | 3.0 | 18 | 4 | 4.5 | 50 | 2 |
| EMB113020 | 3.0 | 20 | 4 | 4.5 | 50 | 2 |
| EMB113025 | 3.0 | 25 | 4 | 4.5 | 50 | 2 |
| EMB114012 | 4.0 | 12 | 4 | 6 | 50 | 2 |
| EMB114014 | 4.0 | 14 | 4 | 6 | 50 | 2 |
| EMB114016 | 4.0 | 16 | 4 | 6 | 50 | 2 |
| EMB114018 | 4.0 | 18 | 4 | 6 | 50 | 2 |
| EMB114020 | 4.0 | 20 | 4 | 6 | 50 | 2 |
| EMB114025 | 4.0 | 25 | 4 | 6 | 50 | 2 |
